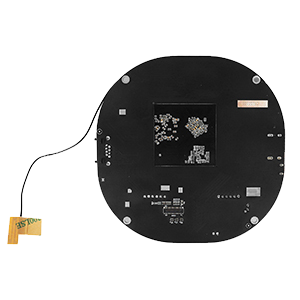

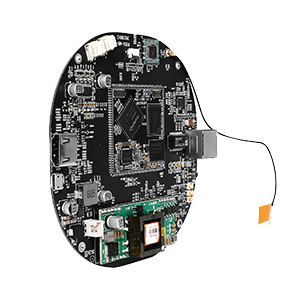

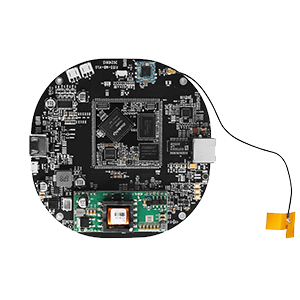

M66+1
Android smart motherboard M66-1 is widely used in human identification, commercial advertising machines, interactive all-in-one machines, security, medical care, transportation, finance, industrial control, etc. such as: advertising machines, digital signage, smart self-service terminals, smart retail terminals, O2O smart Equipment, industrial control host, robot equipment and other intelligent control fields.
Feature
-
High performance low-power processor
RK3566 Android integrated motherboard, using Rockchip quad-core 64-bit ARM chip solution, is a high-performance, low-power application processor.
-
Support latest OS
Support Android11 operating system, RK3566 master is CPU based on Context-A55 architecture, GPU adopts Mali-G52 and embedded 3D
-
Strong display performance
The engine will maximize display performance and very smooth operation. Support 4K@60fps, H.265 almost full format H.264 decoder 4K@60fps decoder, also support 1080p@60fps H.264/H.265 encoder, high-quality JPEG encoder/decoder.
-
NPU enable it handle mixed operation
The built-in NPU supports INT8/INT16/FP16/BFP16 MAC mixed operation.
Specifications
Parameters | |
---|---|
Master chip |
Rockchip RK3566 |
GPU |
ARM G52 2EE. |
NPU |
0.8Tops@INT8 performance, integrated efficient AI Accelerator RKNN NPU |
Video processor |
Support for 4k 60fps (H.265 / H.264 / VP9) video decoding |
RAM |
2GB/ 4GB/ 8GB LPDDR4 32Bit bandwidth, which supports the full-link ECC |
ROM |
16GB/32GB/64GB/128GB eMMC. |
hardware future | |
---|---|
Internet |
Gigabit Ethernet (1000Mbps) |
WIFI |
Support for extension M.2 extension 5G |
Display |
1 × HDMI2.0, supports 4K@60fps |
Audio |
1 × HDMI audio output |
USB |
1 × USB 2.0 OTG |
Camera |
1 × MIPI CSI camera interface |
interfaces |
SPI、UART、I2C、I2S、SDIO、PWM、ADC、GPIO |
